B-7472-003: 2" Diameter x 1/8" wall x 13" Face Length Aluminum Dead Shaft Idler Roll
Our Price:
$
170.28
Each
Part #:
B-7472-003
Product Weight:
2 Pounds (1 kg)
Quantities Greater Than in Stock:
Usually Ships in 2 to 4 Weeks
Quantity in Stock
:
(Out of Stock)
Availability:
Usually Ships in 1 to 2 Business Days
Part #
:
B-7472-003
Qty:
This Item is Made From and/or Includes
2 of
B-7226-003: Bearing ER with 3/4" Bore (501916)
1 of
B-7593-003: Idler
Description
PDF Printer Friendly Version of Drawing
Download Solid Model and Autocad Drawing

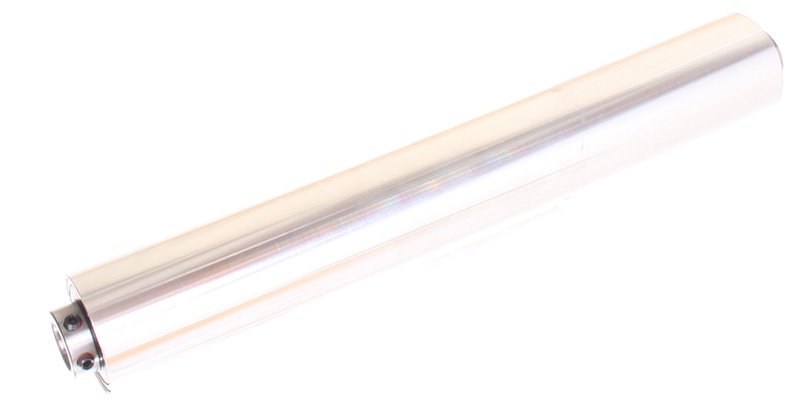

2" Diameter x 1/8" wall x 13" Face Length Aluminum Dead Shaft Idler Roll
• Outer diameter is nominal. This means the outer diameter is machined for the least stock removal until the surface is:
1. Free of all defects
2. Surface finish of 32 micro inches (Ra). This prevents any scratching of delicate webs - films, etc.
3. The outer diameter and bore are concentric within 0.002"
4. Straight within 0.002" or 0.0005" per foot of length. Includes: 1. Two low friction ball bearings. One pressed into each end.
a. Each bearing includes 2 socket head set screws to lock the inner ring of the bearing to the dead (non-rotating) mounting shaft (sold separately) Note: Worn bearings may be replaced using a bearing puller for removal. Replacement bearings are sold separately.
• Slides over 3/4" Outer Diameter Mounting Shaft
• Super Lightweight and Low-inertia
